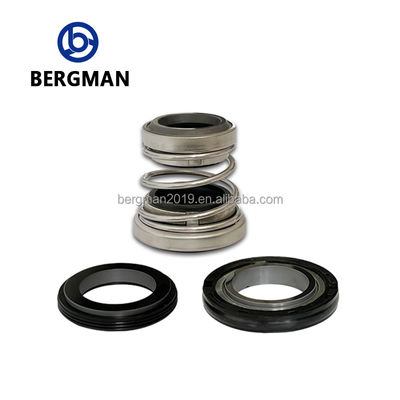

BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal

  • BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal
  • BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal
  • BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal
  • BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal
  • BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal
  • BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal
Place of Origin CN:GUANGZHOU
Μάρκα BERGMAN
Model Number 560D
Minimum Order Quantity 1
Τιμή $12-20

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Size 25/30mm Model 560D
Pressure ≤ 0.3mpa Temperature range -20°C-70°C
Line speed ≤ 5m/s Face material CAR SIC
Seat material CER SIC Secondary seal NBR VITON
Metal parts SS304 SS316 Shaft size 25/30, 30/35, 40/45, 45/50
Max pressure ≤ 0.3mpa Max temperature 120°C (depends on O-ring)
Max line speed ≤ 10m/s Material options Tungsten carbide, silicon carbide, carbon graphite, alumina
Seal types O-ring, PTFE
Επισημαίνω

BERGMAN 560D rotary pump seal

,

25/30mm mechanical pump seal

,

rotary pump seal with warranty
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
560D-25/30 Facing Size EBARA Kawami WQ Submersible Pump Mechanical Seal
Product Specifications
Attribute Value
Size 25/30mm
Country of Origin Guangzhou, China
Brand BERGMAN
Model 560D
Application Rotary pump
Pressure ≤ 0.3mpa
Temperature -20°C to 70°C
Line Speed ≤ 5m/s
Product Description
High-quality mechanical seal designed for WQ submersible pumps with excellent durability and performance characteristics.
Technical Specifications
  • Face Material: CAR SIC
  • Seat Material: CER SIC
  • Secondary Seal: NBR VITON
  • Metal Parts: SS304/SS316
  • Certificate: ISO9001-2015
Applications
  • Models: ED560, 560D, 560DE
  • Sizes: 13-70mm shaft sizes available
  • Compatible with Ebara, Southern, Hejian, and most WQ submersible pumps
  • Can replace Burgman, John Crane, AES and other major brands
Our Advantages
2,000+ square meter warehouse with large inventory for fast delivery. We use wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, and alumina for superior seal performance.

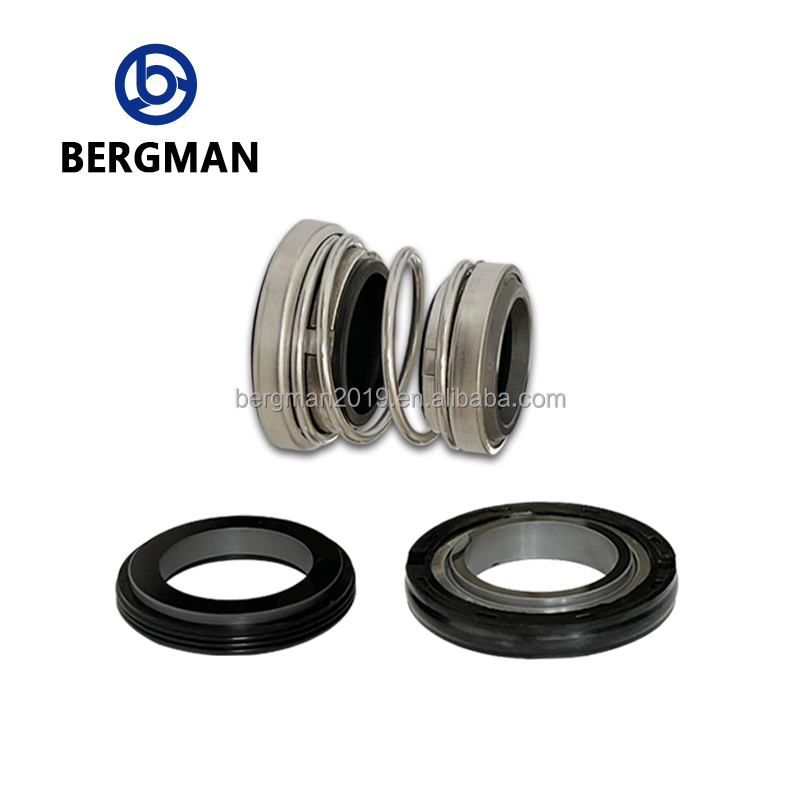

BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal 0

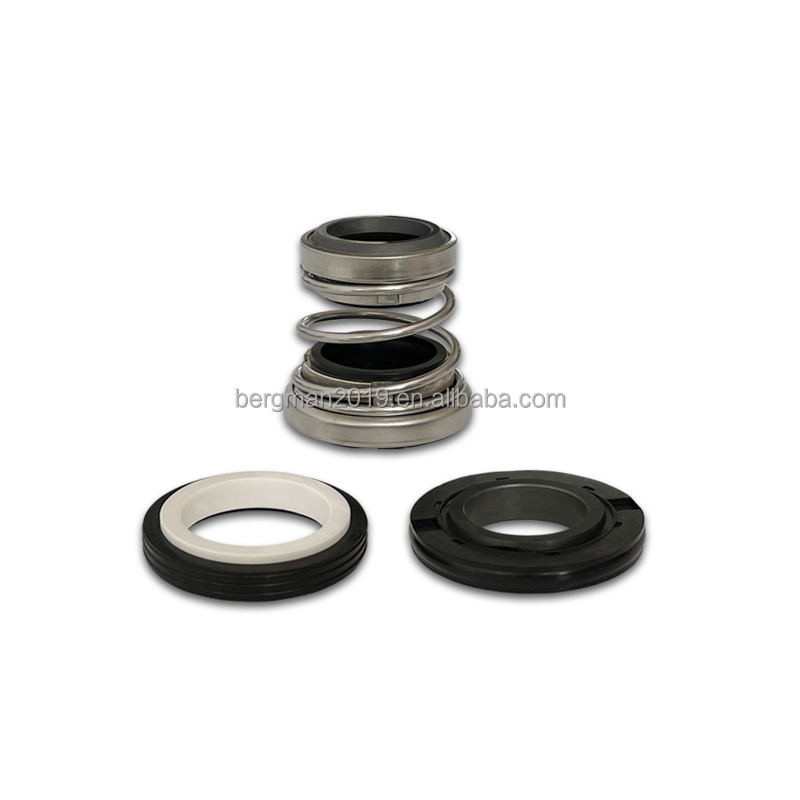

BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal 1

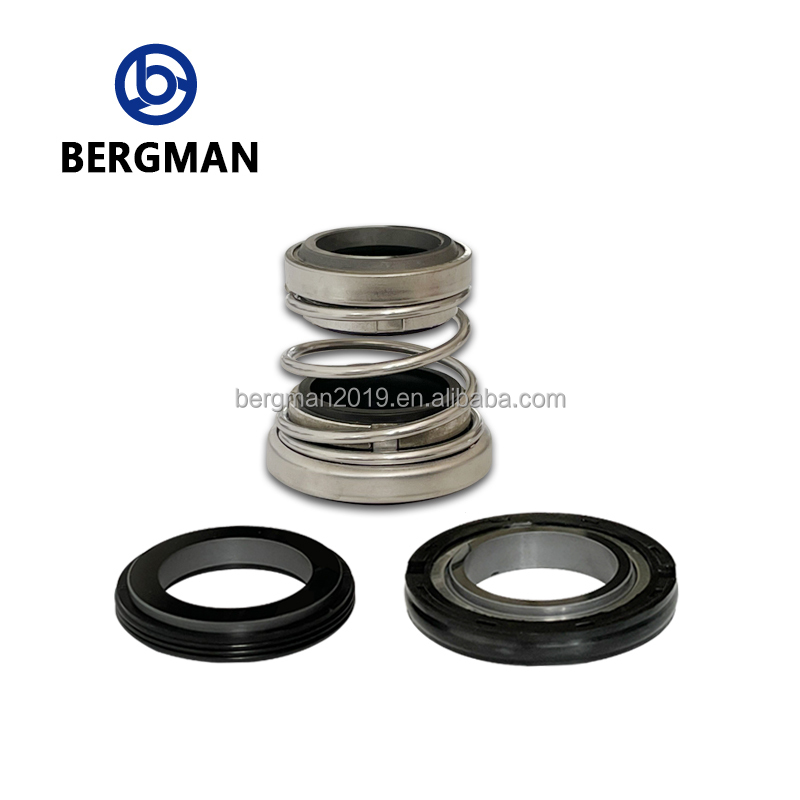

BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal 2
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has over 20 years of experience in mechanical seal manufacturing. We offer a comprehensive range of mechanical seals including fluid seals, metal bellows seals, and various sealing materials.

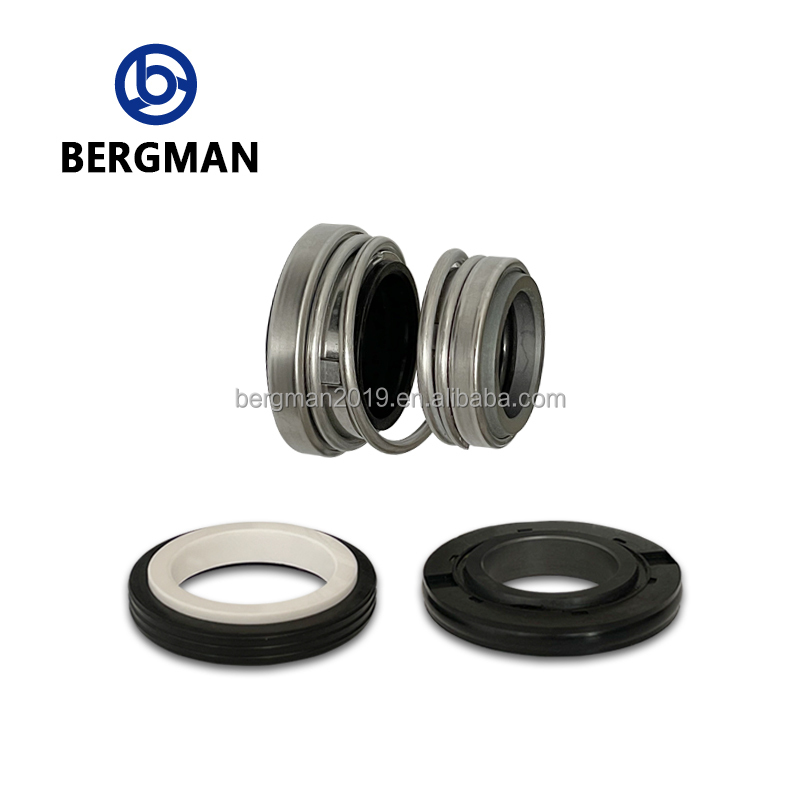

BERGMAN 560D-25/30mm Rotary Pump Mechanical Seal 3
Production Capabilities
  • Modern machine tools and dust-free workshop
  • Rigorous inspection and pressure testing for every seal
  • 2,000+ square meter warehouse with quick dispatch
  • OEM customization services available
Application Range
Our mechanical seals are widely used in pipeline pumps, centrifugal pumps, sewage pumps, and chemical pumps across industries including petroleum, chemical, aerospace, pharmaceutical, and food processing.
