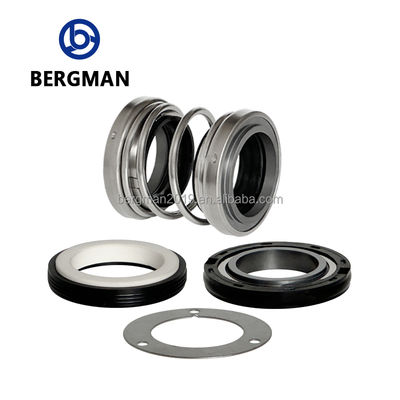

BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps

  • BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
  • BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
Place of Origin CN:GUANGZHOU
Μάρκα BERGMAN
Model Number 560D
Minimum Order Quantity 1
Τιμή $12-20

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Size 35mm Model 560D
Pressure limit ≤ 0.3mpa Temperature range -20°C-70°C
Line speed ≤ 5m/s Face material CAR SIC
Seat material CER SIC Secondary seal NBR VITON
Metal parts SS304 SS316 Shaft sizes 25/30, 30/35, 40/45, 45/50
Standard sizes 14/15/16mm, 17/18/19mm, 20/25/30mm, 35/40/45mm, 50/60/70mm Max temperature 120°C (depends on O-ring)
Max line speed ≤ 10m/s Application type Rotary pump
Compatible pumps Ebara, Southern, Hejian, WQ submersible
Επισημαίνω

BERGMAN 560D-35mm rotary pump seal

,

mechanical seal for WQ submersible pumps

,

35mm pump seal with warranty
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
ED 560D-35mm Facing Size EBARA Kawami WQ Submersible Pump Mechanical Seal
Product Specifications
Attribute Value
Size 35mm
Country of Origin Guangzhou, China
Brand BERGMAN
Model 560D
Application Rotary pump
Pressure ≤ 0.3mpa
Temperature ≤ -20°C-70°C
Line Speed ≤ 5m/s
Service OEM customization service
Product Description
The ED 560D-35mm mechanical seal is designed for EBARA Kawami WQ submersible pumps and similar rotary pump applications. Manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd., this high-quality seal offers reliable performance under demanding conditions.
Technical Specifications
  • Standard sizes available: 14-70mm (including 35mm)
  • Face materials: CAR SIC / CER SIC
  • Secondary seal options: NBR, VITON
  • Metal parts: SS304, SS316
  • Certification: ISO9001-2015
Applications
  • Compatible with EBARA pumps, Southern pumps, Hejian pumps, and most WQ submersible pumps
  • Can replace Burgman, John Crane, AES, and other world-renowned brand seals
  • Available for immediate shipment from our 2,000+ square meter warehouse
  • OEM and customization services available
Material Options
We offer wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings to meet various application requirements.

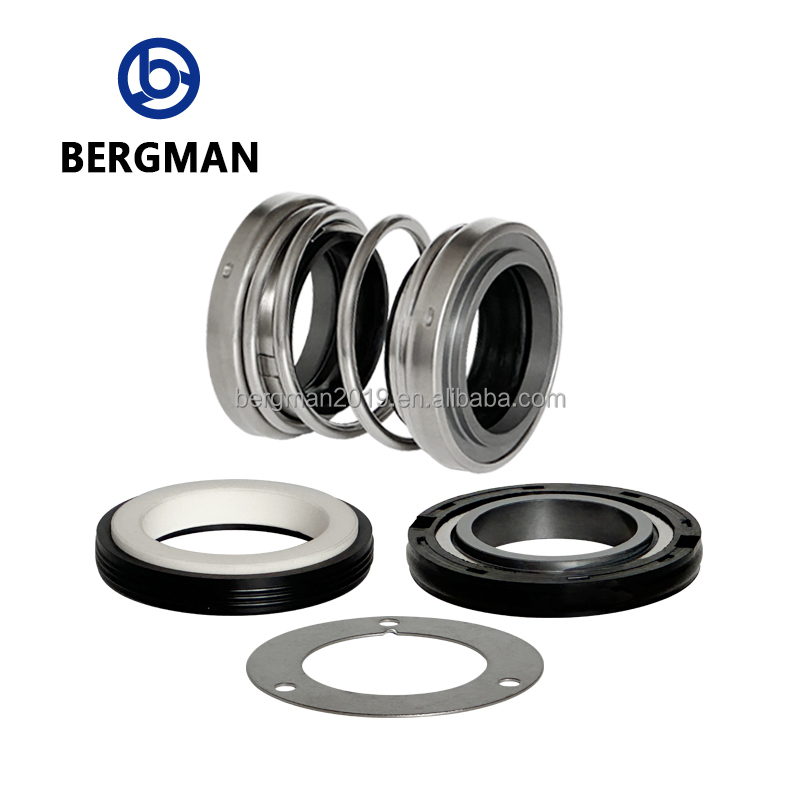

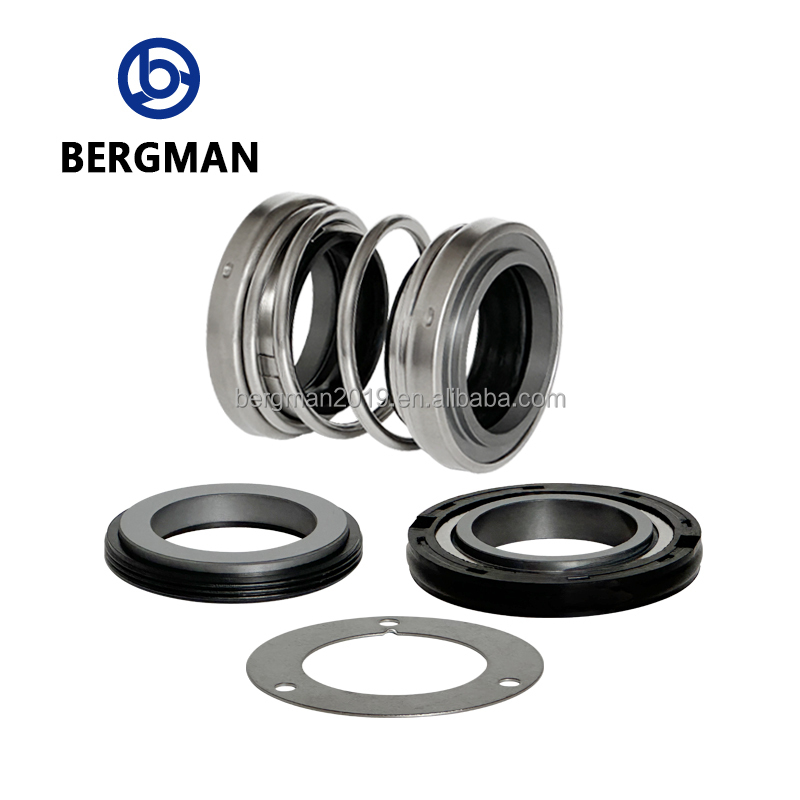

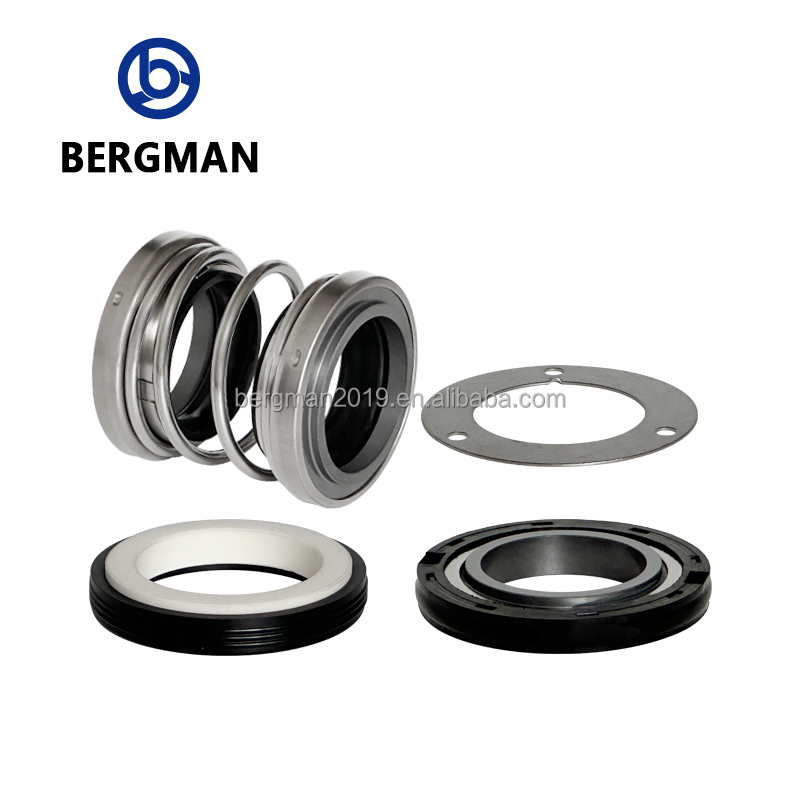

BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 0 BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 1 BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 2
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been in operation since 1996. With over 20 years of experience, we specialize in manufacturing high-quality mechanical seals for various industrial applications. Our company is ISO9001:2015 certified and maintains a 2,000+ square meter warehouse for quick delivery.

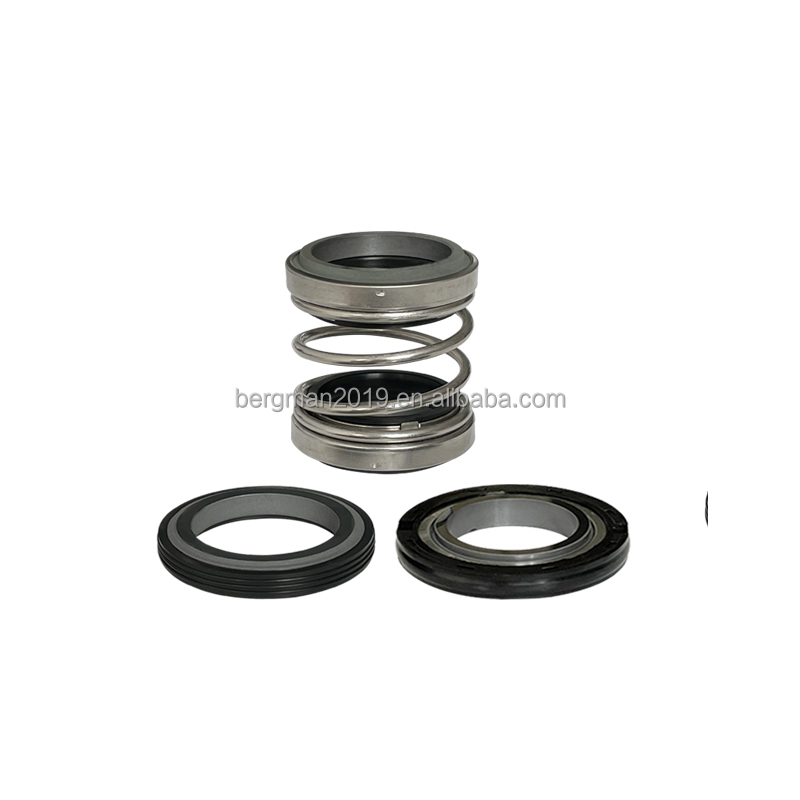

BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 3
Production Capabilities
  • Modern advanced machine tool equipment
  • Dust-free workshop environment
  • Comprehensive inspection equipment
  • Assembly line operation
  • Each seal undergoes factory inspection and pressure testing

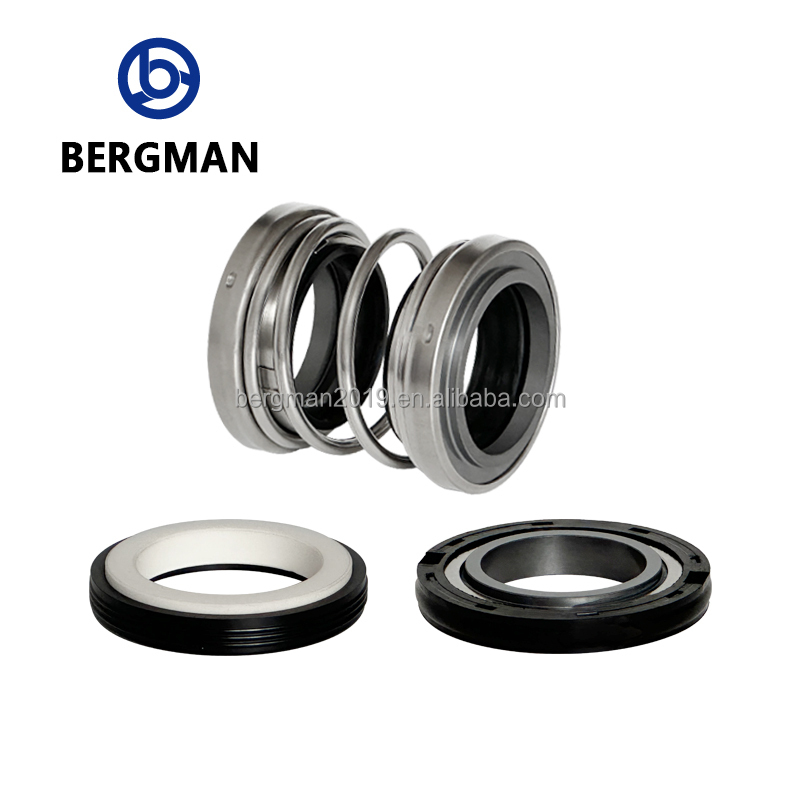

BERGMAN 560D-35mm Rotary Pump Mechanical Seal for WQ Submersible Pumps 4
Application Range
Our mechanical seals are widely used in pipeline pumps, centrifugal pumps, sewage pumps, and chemical pumps across various industries including petroleum, chemical, aerospace, pharmaceutical, food processing, and agricultural irrigation.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items typically require 10-25 days for production.
