Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard

  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
Τόπος καταγωγής Guangzhou, Κίνα
Μάρκα BERGMAN, BERGMAN
Αριθμό μοντέλου T05-25mm
Ποσότητα παραγγελίας min 1
Τιμή $35-60

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Μέγεθος 25 χιλιοστών Υλικό προσώπου Καρβίδιο βολφραμίου TC
Υλικό καθίσματος Καρβίδιο βολφραμίου TC Ελαστομερές υλικό VITON FPM
Μεταλλικά μέρη SS316 Hastelloy C AM350 Μέγιστη πίεση ≤ 1,5MPa
Ταχύτητα γραμμής ≤ 15m/s Κλίμακα θερμοκρασίας -20 ° C-180 ° C
Κωδικός HTS 8484.20.00 Μοντέλο T05-25mm
Τυποποιημένα μεγέθη 20mm, 25mm, 35mm Πρότυπα συμμόρφωσης DIN24960, ISO3069, EN12576, API682
Δευτερεύουσα σφραγίδα VITON FPM Υλικές επιλογές Καρβίδιο βολφραμίου, καρβίδιο πυριτίου, γραφίτης άνθρακα, αλουμίνα
Ανταλλακτικά μοντέλα Flygt 3102, 5520, 3085
Επισημαίνω

Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal

,

25mm Flygt Pump Mechanical Seal

,

DIN24960 Standard Pump Mechanical Seal
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal
Product Overview

This high-quality mechanical seal is designed to replace Flygt pump seals, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.

Technical Specifications
Parameter Value Parameter Value
Name Mechanical Seal Size Standard size (20mm, 25mm, 35mm)
Brand BERGMAN Model T05-25mm
Pressure ≤ 1.5mpa Line Speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models

This seal is compatible with a wide range of Flygt pump models including:

  • 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071
  • 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140
  • 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740
  • 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080
  • 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170
  • 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350
  • 3351, 3356, 3400, 3501, 3530, and full range of Flygt pump mechanical seals
Product Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective options
  • Large inventory with factory-direct pricing
  • Compatible with Burgman, John Crane, AES and other renowned brands
  • OEM and customization services available
  • Fast delivery and excellent after-sales service
Material Advantages

Our seals feature wear-resistant materials including:

  • Tungsten carbide
  • Silicon carbide
  • Carbon graphite
  • Alumina
  • Rubber seals (VITON FPM)
  • PTFE seals
  • High-quality O-rings

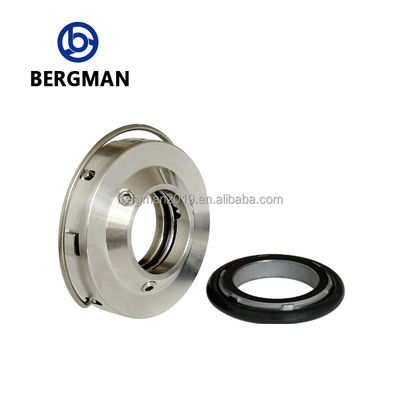

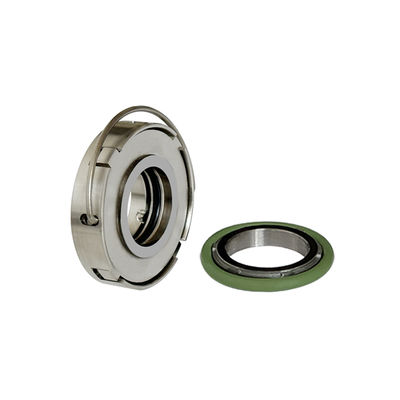

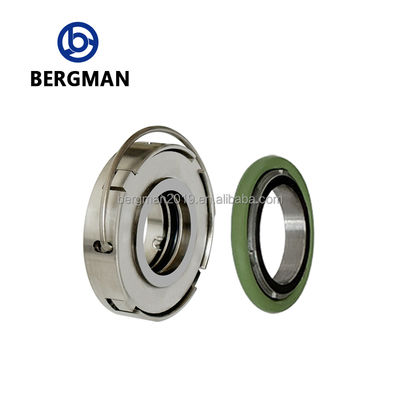

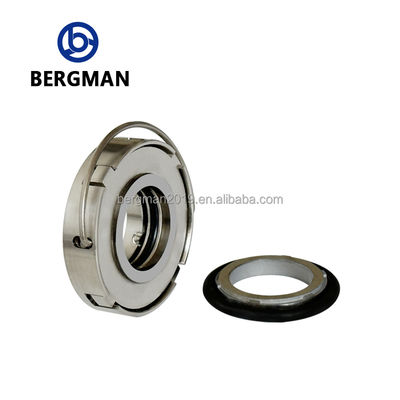

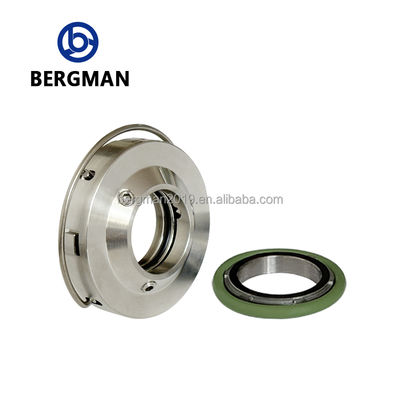

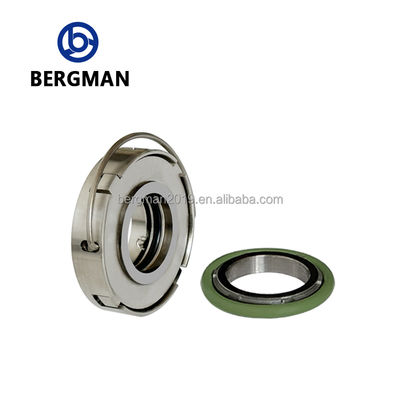

Product Images
Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 0 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 1 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 2
Company Profile

Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company was reorganized in 2019 and expanded in 2023. We are ISO9001:2015 certified and specialize in:

  • Pump mechanical seals
  • Axe mechanical seals
  • Fluid mechanical seals
  • Metal bellows mechanical seals
  • Various sealing materials (carbide, silicon carbide, carbon graphite, alumina)

Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for fast delivery.

Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 3 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 4 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 5
Frequently Asked Questions
Q: Are you a factory or a trader?

A: We are a production factory with our own international trade department.

Q: Where is your factory located?

A: Our factory is in Guangzhou City, near Guangzhou Port and Shenzhen Port.

Q: How many days is your delivery time?

A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.

Q: What are your payment terms?

A: For stock: 100% prepayment. For custom orders: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
